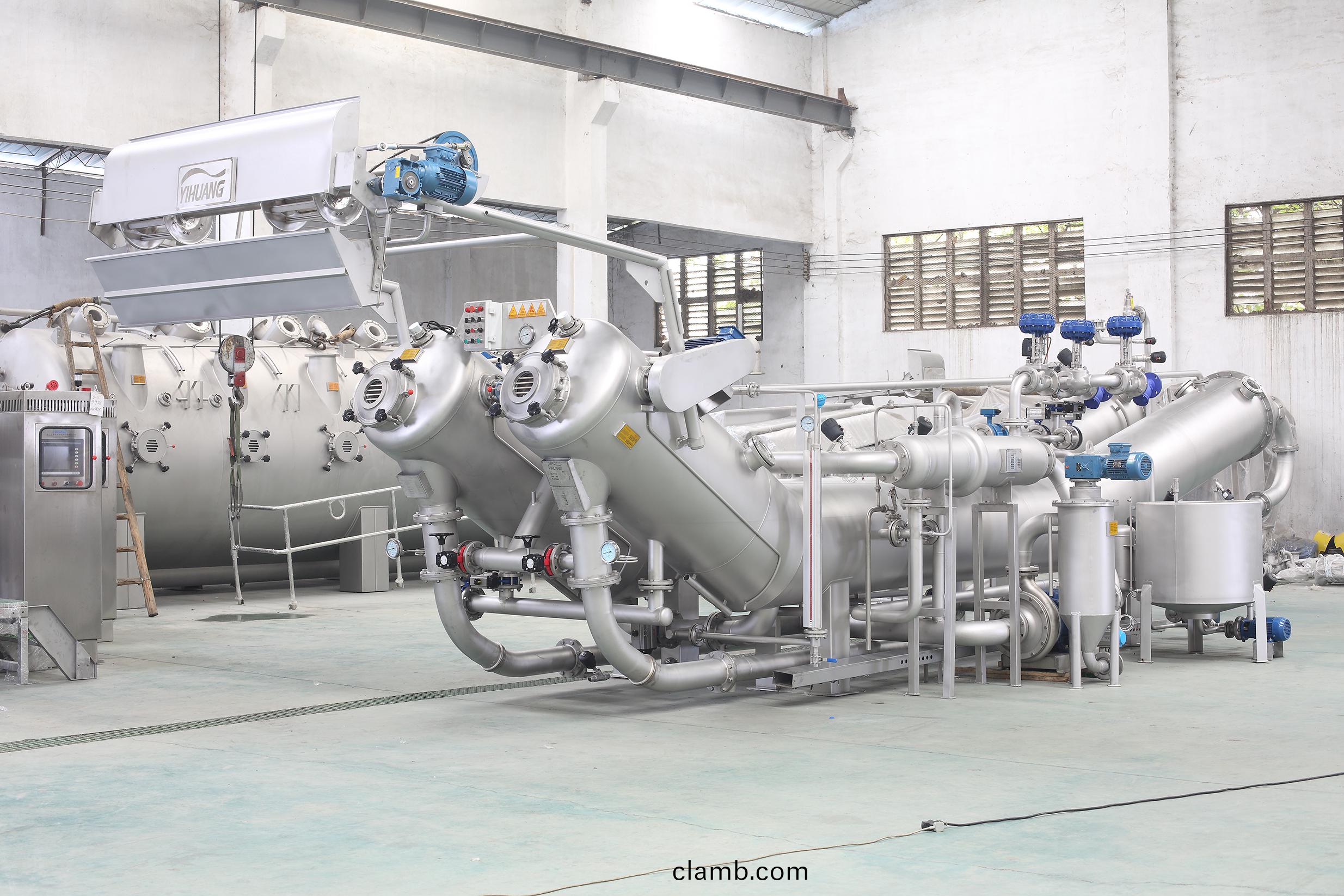

YLH High Temperature Multifunctional Environmental Friendly Dyeing Machine Series

1. Load capacity: 300Kg/tube

2. A low liquor ratio of 1:5 can be achieved in fully loaded.

3. This dyeing machine adopts a "three stage" fabric groove technology, which can avoid fabric bottoming, ensure smooth fabric movement and dyeing quality.

4. A new type of dye adjustment system ensures uniform temperature distribution in the dyeing tank and better dyeing quality.

5. Widely applicable, this machine can be used for dyeing and finishing common light, thin, or heavy fabrics, such as knitted fabrics, woven fabrics, chemical fibers, blends, etc. Especially suitable for dyeing and finishing ultra soft microfiber fabrics. Dyeing and finishing fabrics such as polyester spandex and nylon spandex used in swimwear and underwear production can still run smoothly and maintain high dyeing and finishing quality.

Technical data:

The maximum operating speed of the fabric lifting drum is 420r/min

Maximum working temperature: 140 ℃

Maximum working pressure: 0.33MPa

Heating rate: 20 ℃~100 ℃, average 5 ℃/min; Average 2.5 ℃/min from 100 ℃ to 130 ℃ (dry saturated steam pressure of 0.7 Mpa)

Cooling rate: 130 ℃ to 60 ℃, average 2.5 ℃/min (cooling water 3 bar, 25 ℃)
